The Original in Drone Trailer

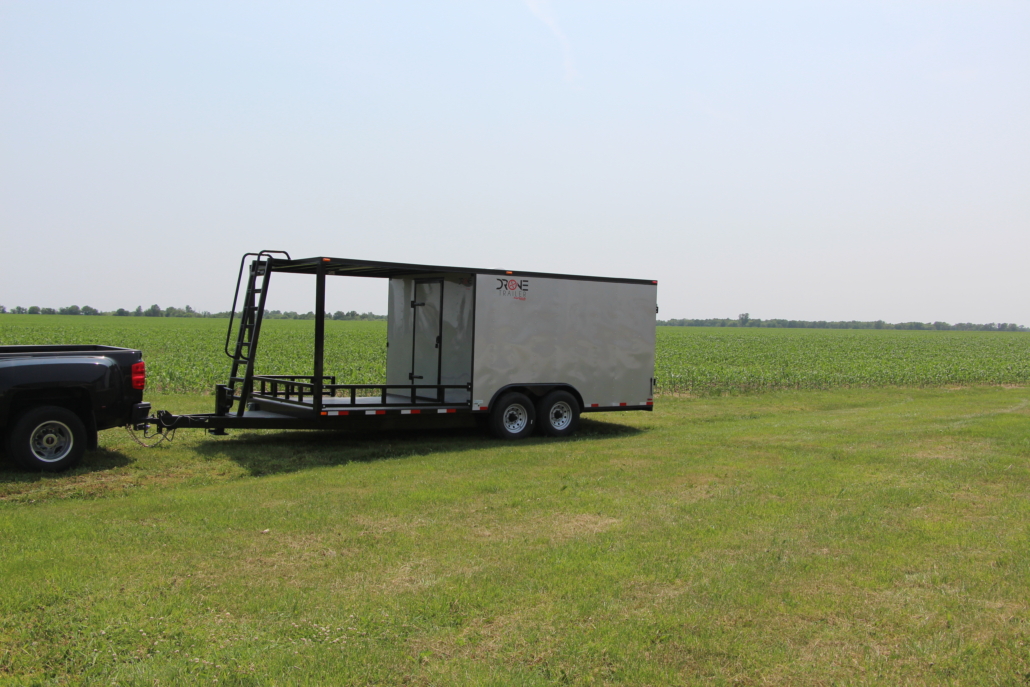

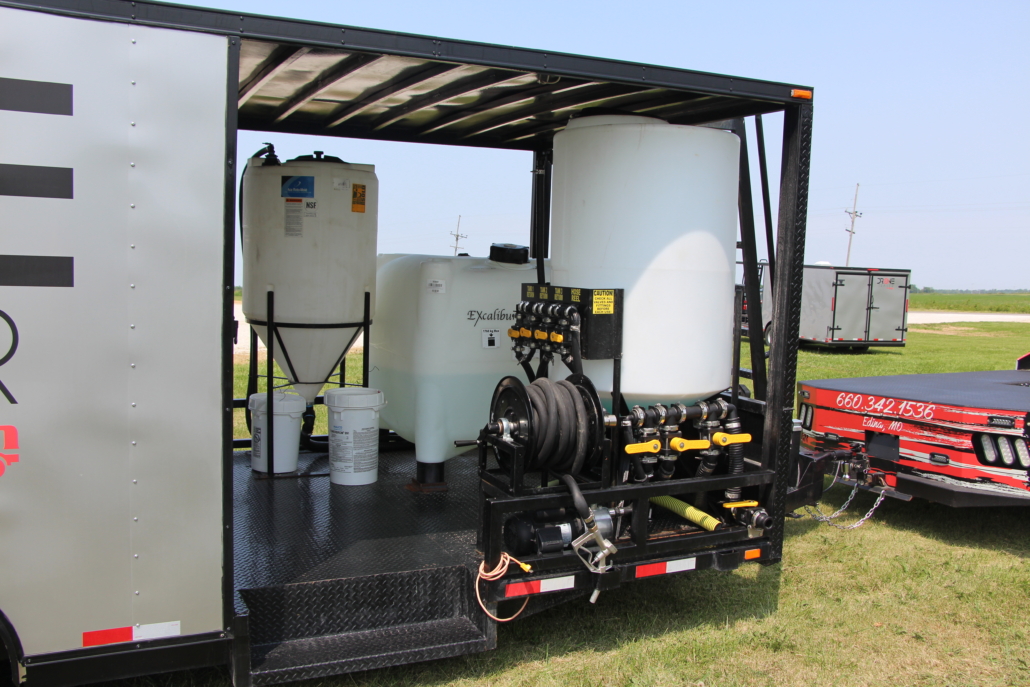

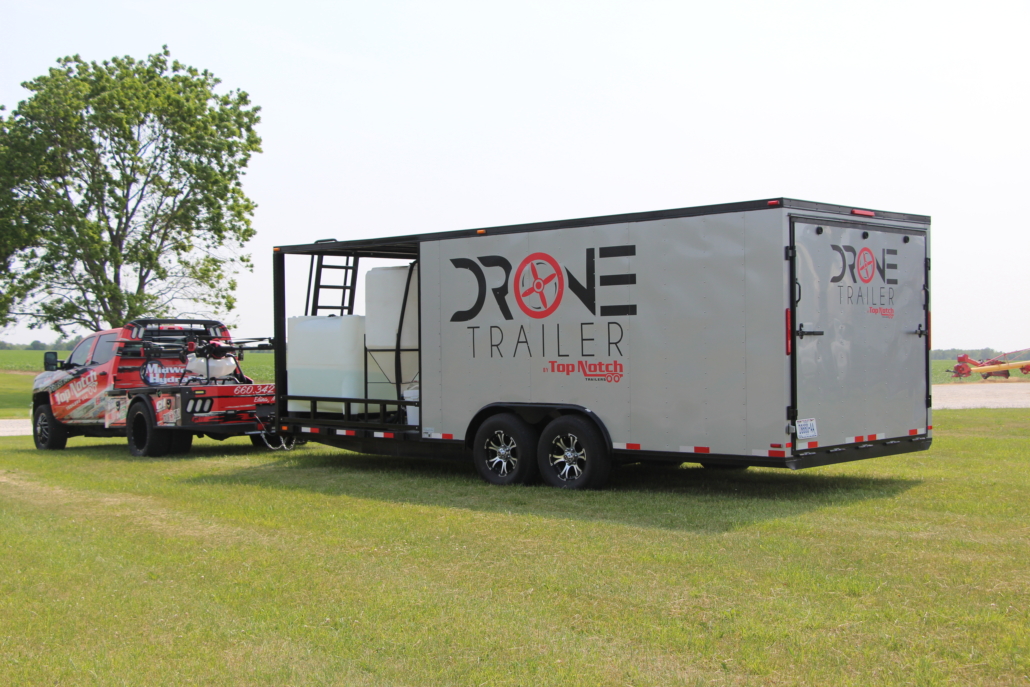

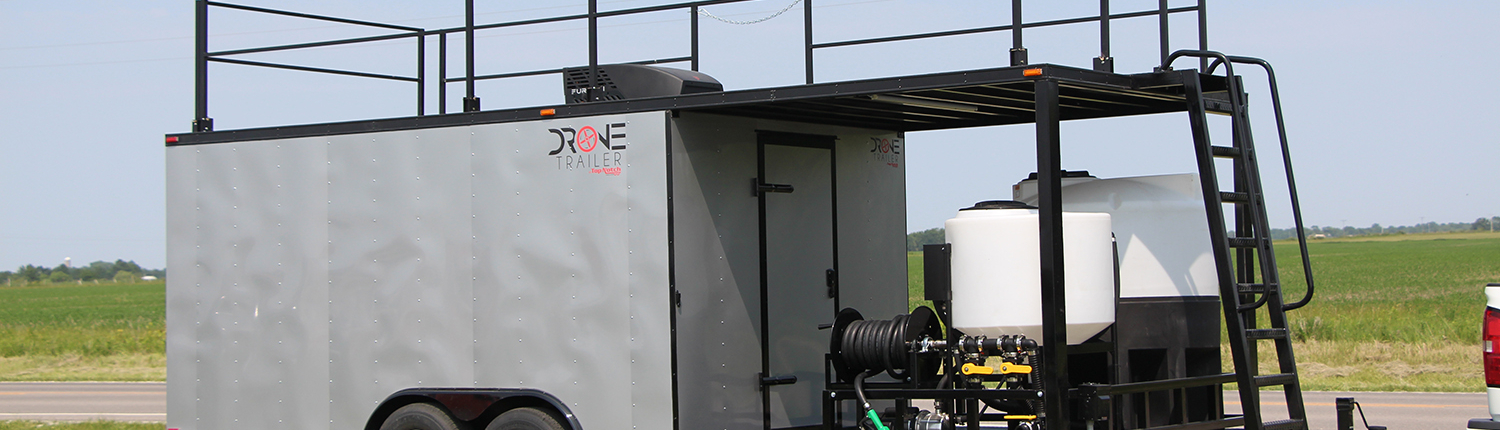

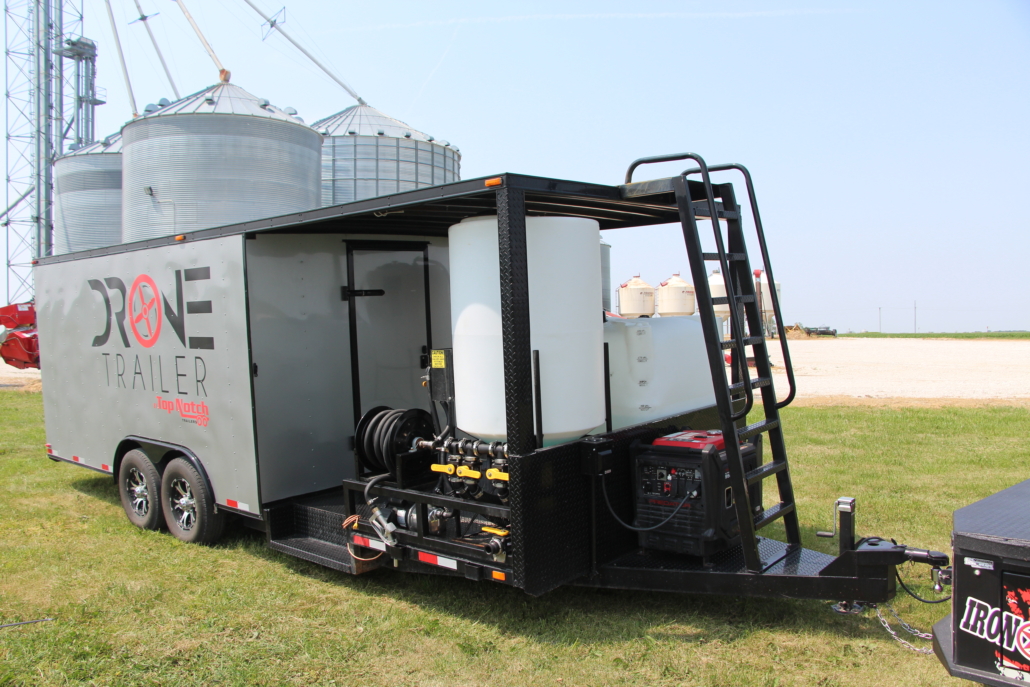

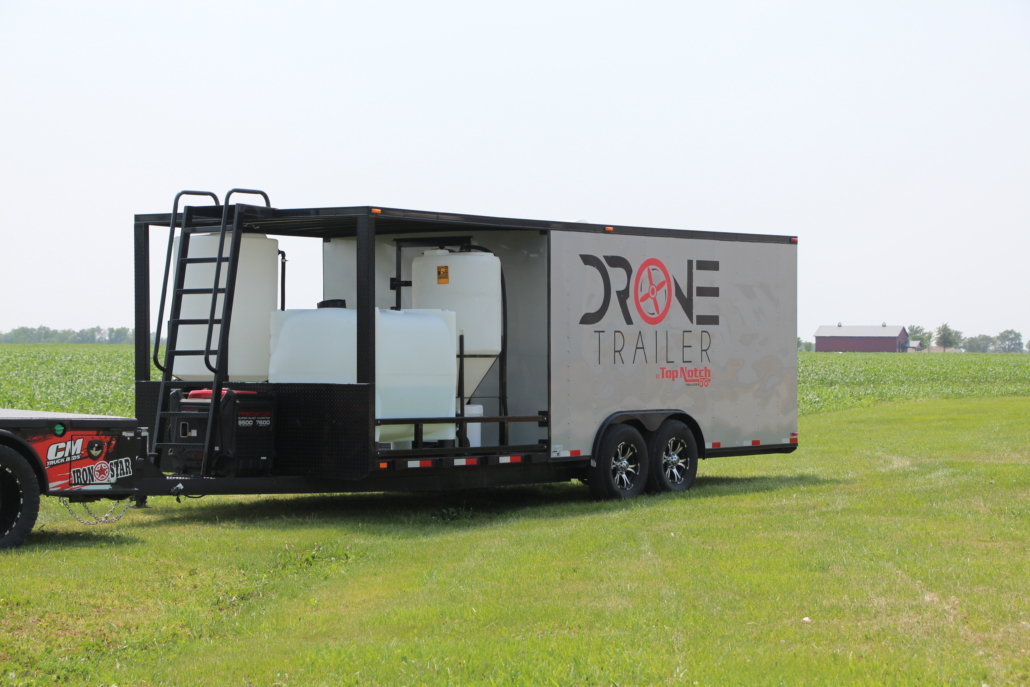

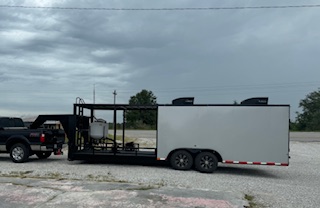

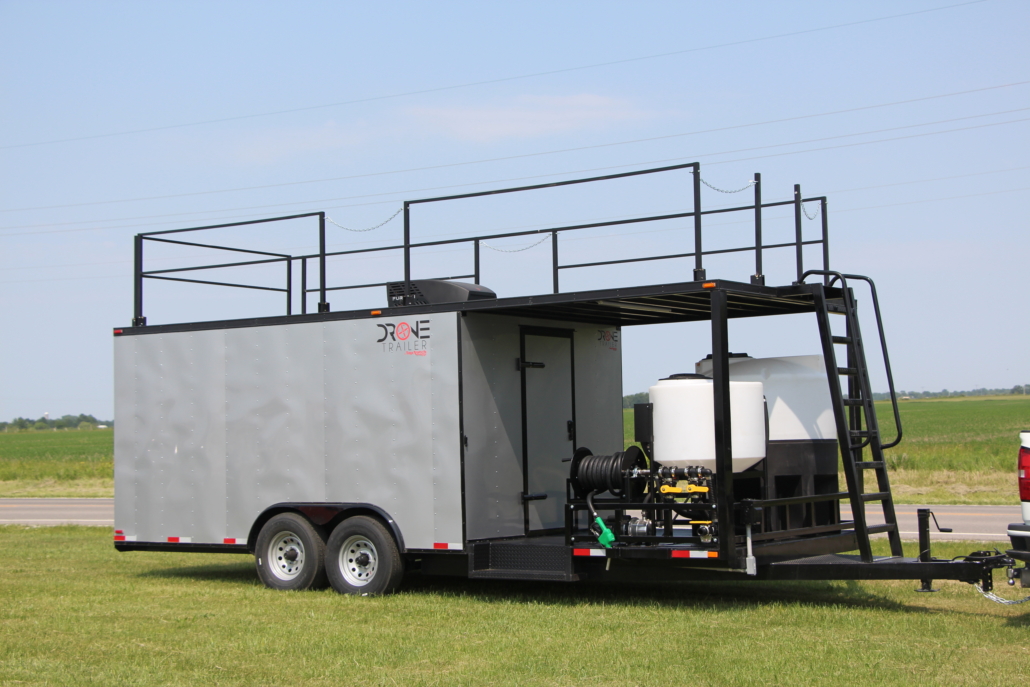

The original Drone Trailer – DT1, was built to boost efficiency while giving the operator maximum enclosed storage space and also offering ventilation for liquid storage. This design increases proficiency while offering protection and comfort to the applicator. The open station was designed for liquid storage while maximizing ventilation, with an observation deck above. The enclosed portion of the trailer provides a work station with an air conditioner option that will provide the applicator comfort and optimal battery charging.

Made to Meet Different Needs

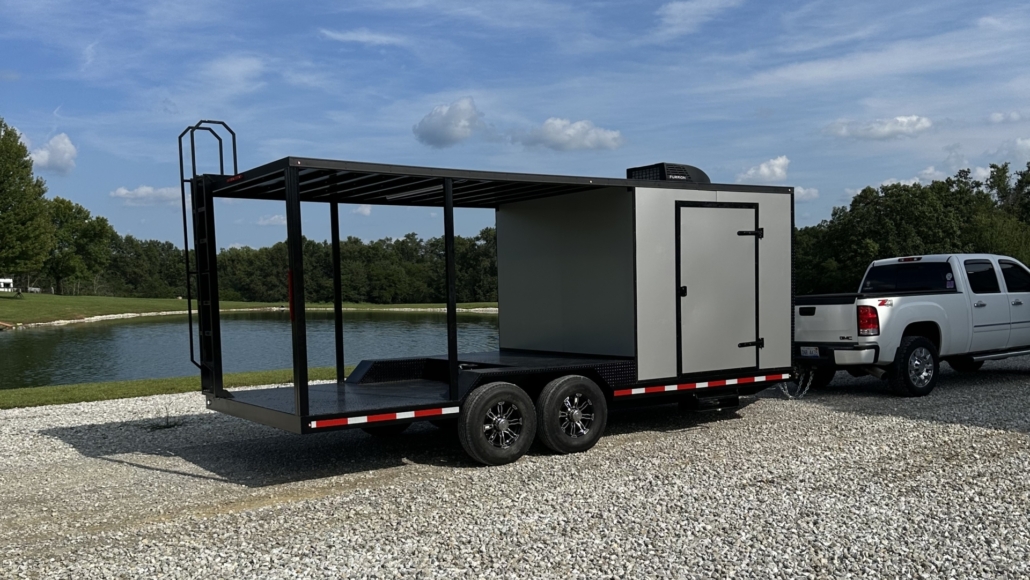

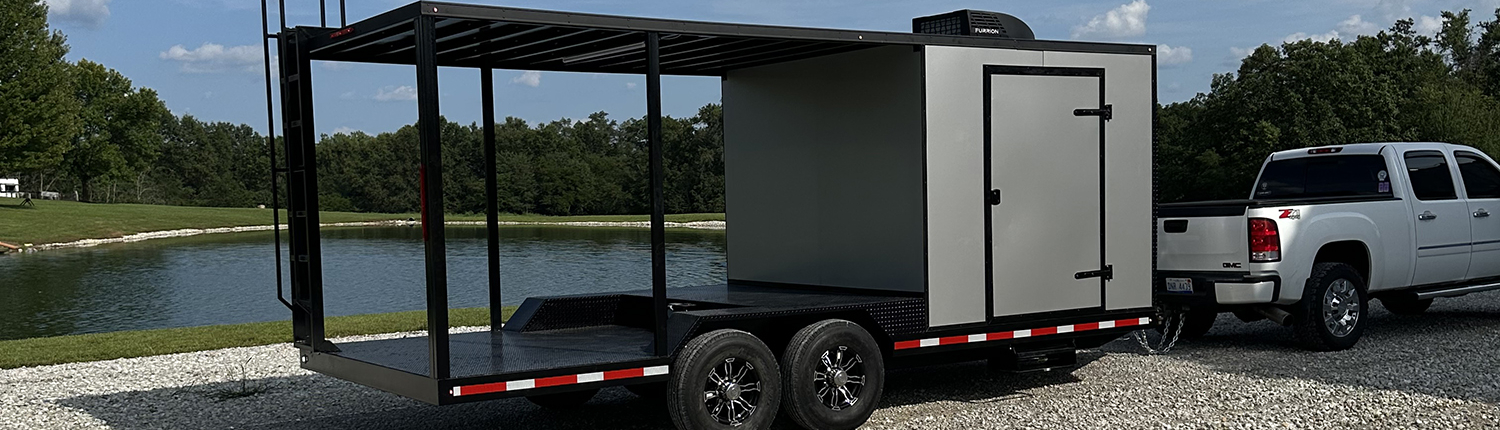

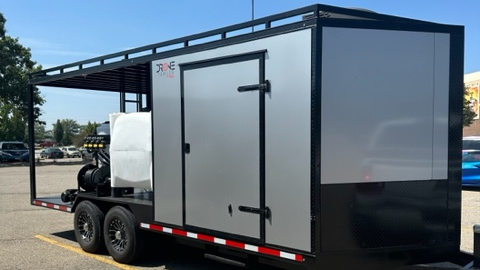

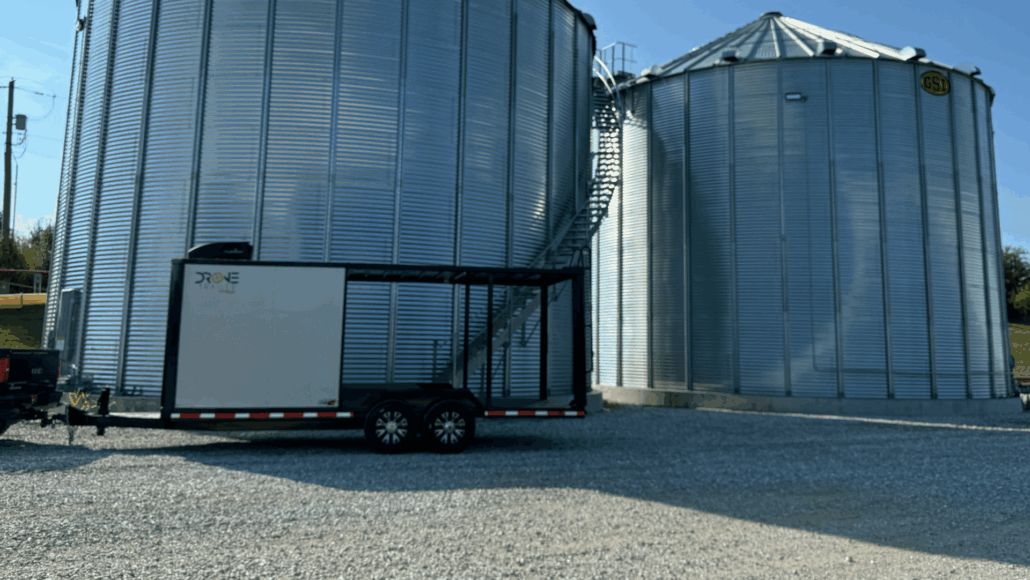

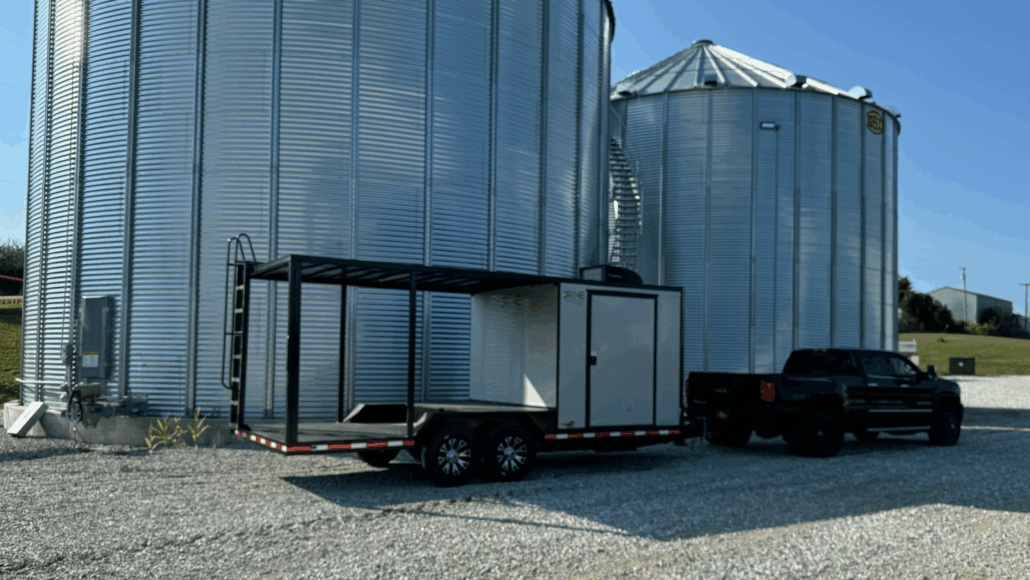

The Drone Trailer – DT2, was also designed for maximum efficiency, with features that will help applicators with different areas of operation. Moving the open station to the back allows the operators to work off of the rear of the trailer in areas that would not allow them to work off of the side. With this change of design, are allowed to place the liquid tanks directly over the axles.

Designed For Versatility

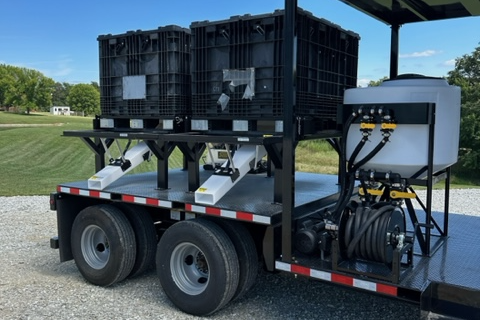

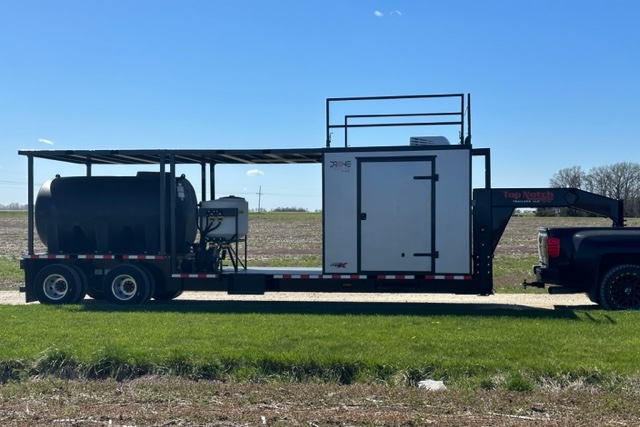

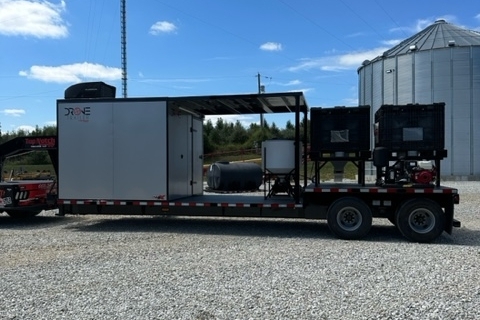

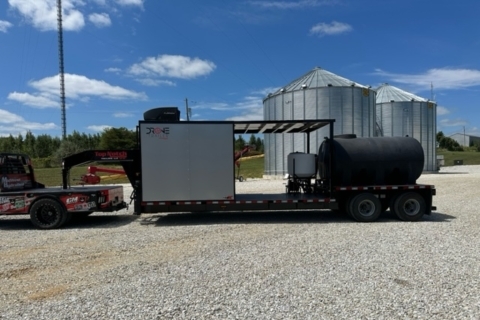

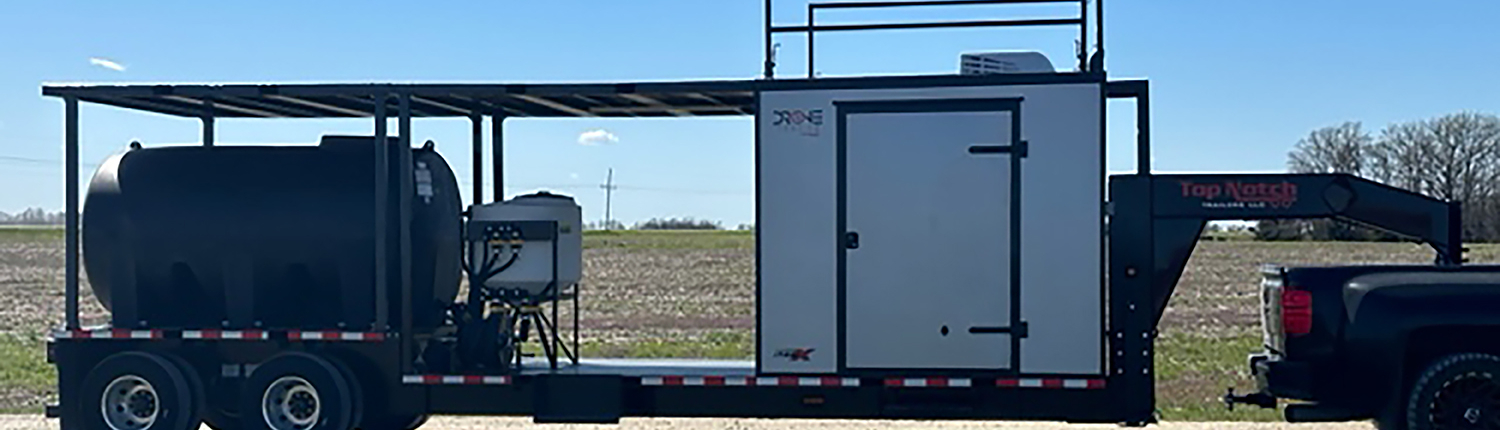

The Drone Trailer – DTX, contains many of the same standard features of the DT1 and DT2 but also offers multiple uses around the farm or commercially. This modular design is capable of swapping the rear liquid platform to the seed blower platform in minutes making this single trailer usable for both types of applications. Drone Trailer DTX is one of the most versatile and innovative drone trailers on the market. Other uses include, but not limited to: Tendering Ground Sprayers or Tendering Planter.

Newest, Most Compact Model

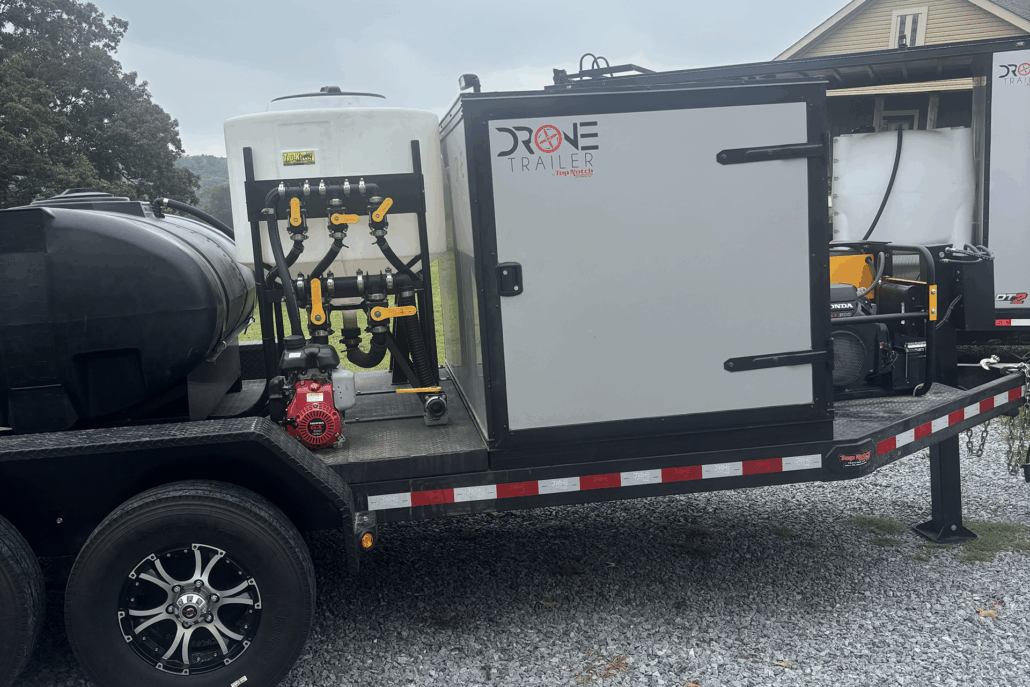

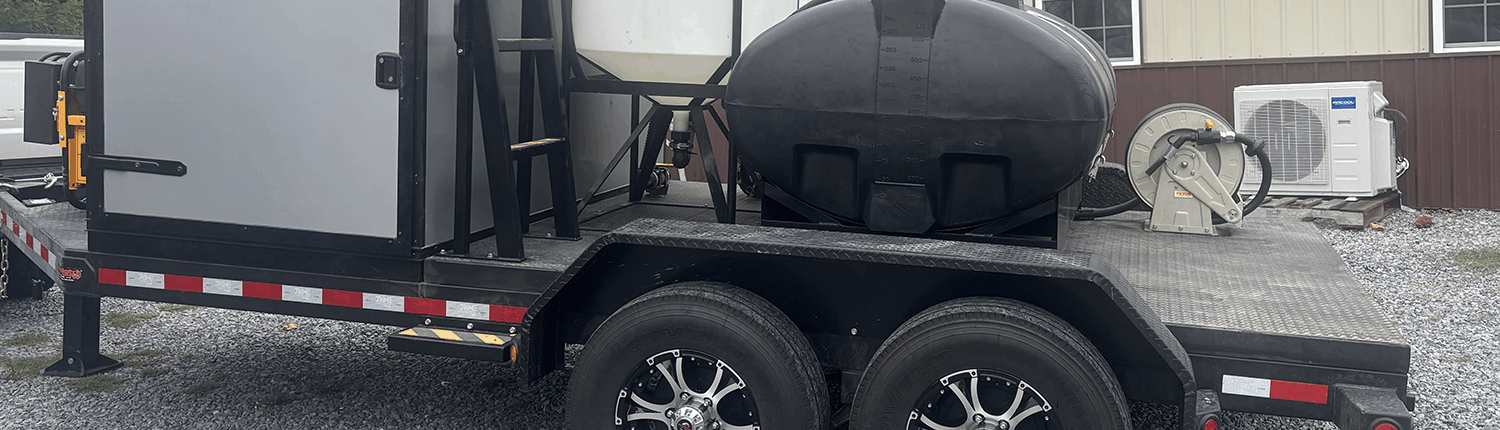

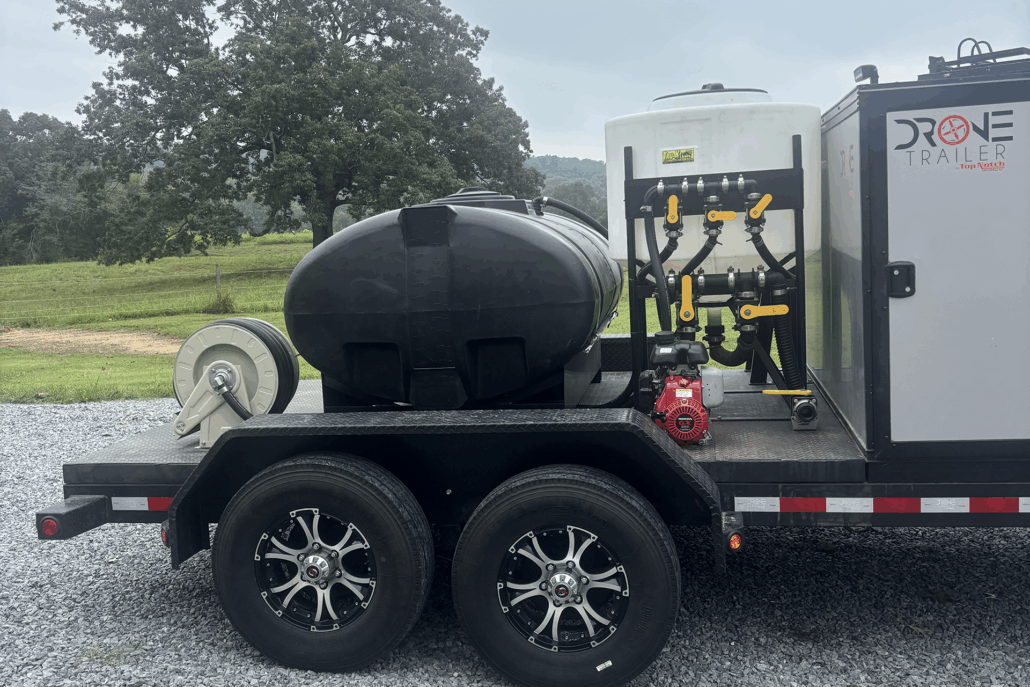

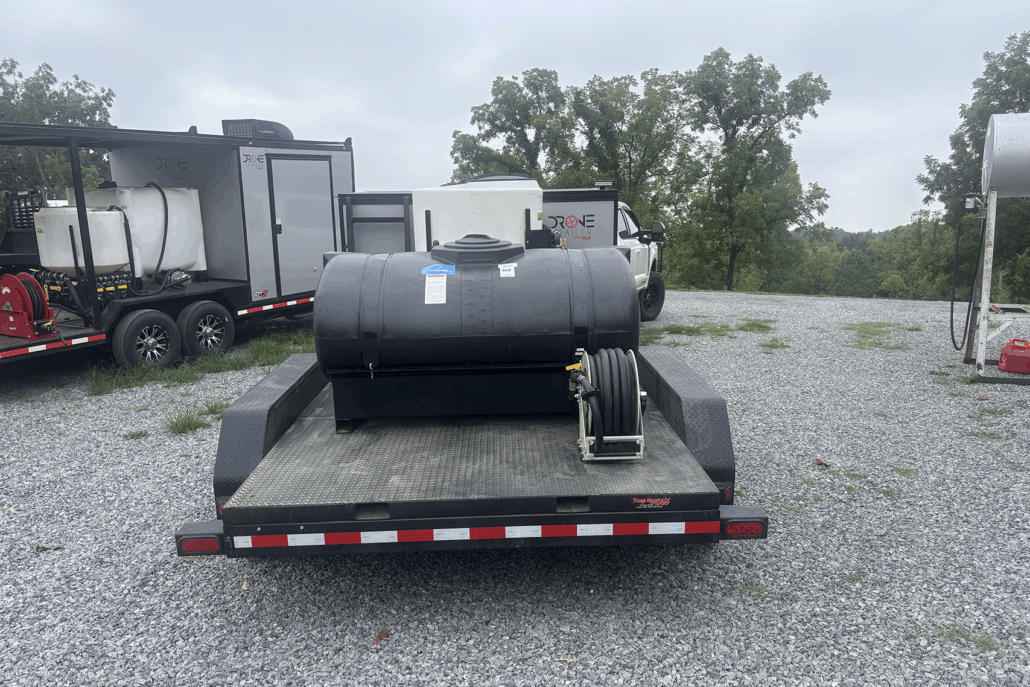

The Drone Trailer – DTMini, is our newest and most compact model. Market demands for a more compact and lightweight trailer prompted us to offer this trailer that allows you to get into small places that our other models could not. The DTMini was built with a Drone Hanger, a 4’ x 4’ x 82” enclosure, that comes with plenty of storage for your drone, batteries and other accessories needed in the field. The Drone Hanger opens on both sides and is equipped with a MORryde sliding tray system that allows you access from either side of the trailer. The Drone Hanger has a full walk-on roof, which gives you the option to maintain line of sight. The trailer has a modular 10’ platform that removes off the rear with just four bolts. This gives you additional options for the trailer and allows you to set on another deck such as a seed blower platform, fuel tank platform or bare deck. Don’t let the size of the DTMini fool you, it’s built to maximize your workflow and help you increase profitability.

About Our Trailers

The Drone Trailer lineup — including the DT1 and DT2 — brings significant advantages to the agricultural drone industry, enhancing both efficiency and operator convenience. With the Drone Trailer DTX, our mission is to provide a versatile, high-capacity trailer that serves multiple functions for today’s applicators. The DTMini, on the other hand, was built for maximum mobility and flexibility, providing a compact solution that goes wherever you need it. After extensive development and field testing, we’re confident these models deliver exactly what ag drone operators need in a dependable spray drone support system.
At Dakota.Ag, we’re committed to provide durable, high-performance products that can handle tough terrain while prioritizing pilot safety and operational efficiency. Every Drone Trailer model is fully customizable to meet the unique demands of each applicator.

Drone Trailer
Standard Features

and Options

  • 20’ Total Length
  • 8’ Open Station
  • 8’ Walk-On Roof w/Ladder
  • 12’ Enclosed Box
  • 7000 lb Axles
  • 14 Ply Tires
  • Rear Ramp Door
  • 2 x 6 Box Tubing Frame
  • 6” C Channel Tongue
  • Gooseneck
  • Roof Air Conditioning
  • Rubber Coin Floor
  • Full Walk-On Roof
  • Base Electrical Pkg Includes: 12 Space Breaker Panel, 4-110V, 1-220V, 2-Switch, 2-Lights, Installation
  • Hose & Hose Reel
  • Pump – 19 Gallon Per Minute
  • Tank – 100 Gallon
  • Tank – 330 Gallon
  • Plumbing Installation
  • Plumbing Materials – Valves & Fittings
  • Fold-Up Railing
  • 20’ Total Length
  • 8’ Enclosed Box Flat Nose
  • 20’ Walk-On Roof w/Ladder
  • 12’ Open Station
  • 7000 lb Axles
  • 14 Ply Tires
  • 4′ Walk Through Door
  • 2 x 6 Box Tubing Frame
  • 6” C Channel Tongue
  • Roof Air Conditioning
  • Fold-Up Railing
  • Base Electrical Pkg Includes: 12 Space Breaker Panel, 4-110V, 1-220V, 2-Switch, 2-Lights, Installation
  • Hose & Hose Reel
  • Pump – 19 Gallon Per Minute
  • Tank – 100 Gallon
  • Tank – 330 Gallon
  • Plumbing Installation
  • Plumbing Materials – Valves & Fittings
  • 25’ Total Length
  • Gooseneck
  • 8’ Removable Box
  • Base Electrical Pkg Includes: 12 Space Breaker Panel, 4-110V, 1-220V, 2-Switch, 2-Lights, Installation
  • 8.5′ Removable Work Station
  • 8.5′ Removable Tank Station
  • 16′ Walk-On Roof
  • 10,000 lb Axles
  • 14 Ply Tires
  • 48″ and 32″ Walk-In Doors
  • I-Beam Chassis
  • Steel Wheels

Plumbing:

  • Tank – 1200 Gallon
  • Tank – 100 Gallon
  • Pump – 19 Gallons Per Minute
  • Hose & Hose Reel
  • Plumbing Materials – Valves & Fittings
  • Plumbing Installation
  • Aluminum Wheels
  • 8.5′ Walk-On Over Tank
  • Seed Blower/Platform
  • Roof Air Conditioner
  • Fold-Up Railing
  • 14’ Total Length
  • 5200 lb Axles
  • 14 Ply Tires
  • 4′ x 4′ x 82″ Enclosure – Drone Hanger
  • MoRryde Sliding Tray
  • 10’ Rear Removable Platform
  • 300 Gallon Sump Bottom Tank
  • 100 Gallon Cone Mix Tank
  • 1” Gas Pump
  • 50’ Hose Reel
  • 12-Volt Lighting
  • Ladder plus Full Walk-On Roof
